Concord HDMI 4K Audio Quality Audio Extractor

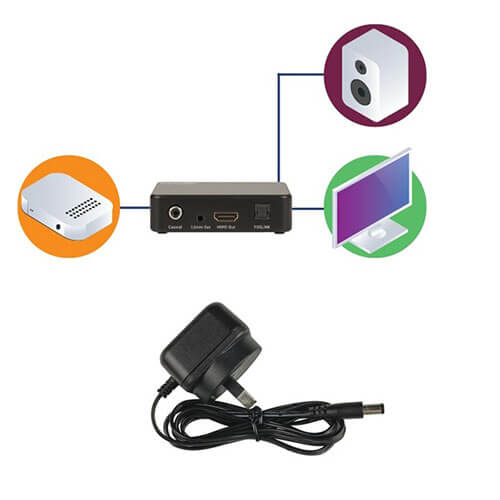

4K UHD This converter extracts the audio stream from a HDMI signal so you can listen to the audio through your home theatre system, amplifier or active speakers. Outputs include digital TOSLINK optical, digital coaxial and analogue 3.5mm stereo audio. It supports HDCP 2.2, HDCP 1.4, HDMI 2.0 and AV signals up to 4K @ 60Hz. HDR, Dolby, DTS, LPCM, and 3D video are also supported, along with an ARC (Audio Return Channel). The HDMI output enables you to still feed the video to your TV or other display, supported by EDID data transmission.

Features: - Extracts audio stream from HDMI - Suitable up to 4K @ 60Hz - Supports: DTS HD, Dolby TrueHD (via HDMI)

Product Specifications

• Digital Audio Format : LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD
• Width : 90.0mm
• Height : 24.0mm
• Depth : 80.0mm
• DC Plugpack Voltage : 5.0V
• DC Current Draw : 1.0A
• Supported Display Resolution : 4K UHD (3840 x 2160)
• Resolution Frequency : 30.0Hz, 60.0Hz
• HDMI Version : 2.0b
• HDMI Maximum Data Rate : 18.0Gb/s
• HDMI Maximum Colour Depth : 10.0b
• HDCP Version : 2.2, 1.4
• HDR Version : HDR 10
• Switcher/Converter Type : Converter
• Input type : HDMI
• Input Connection : HDMI Type-A
• Output Type : HDMI, Audio, Digital Audio

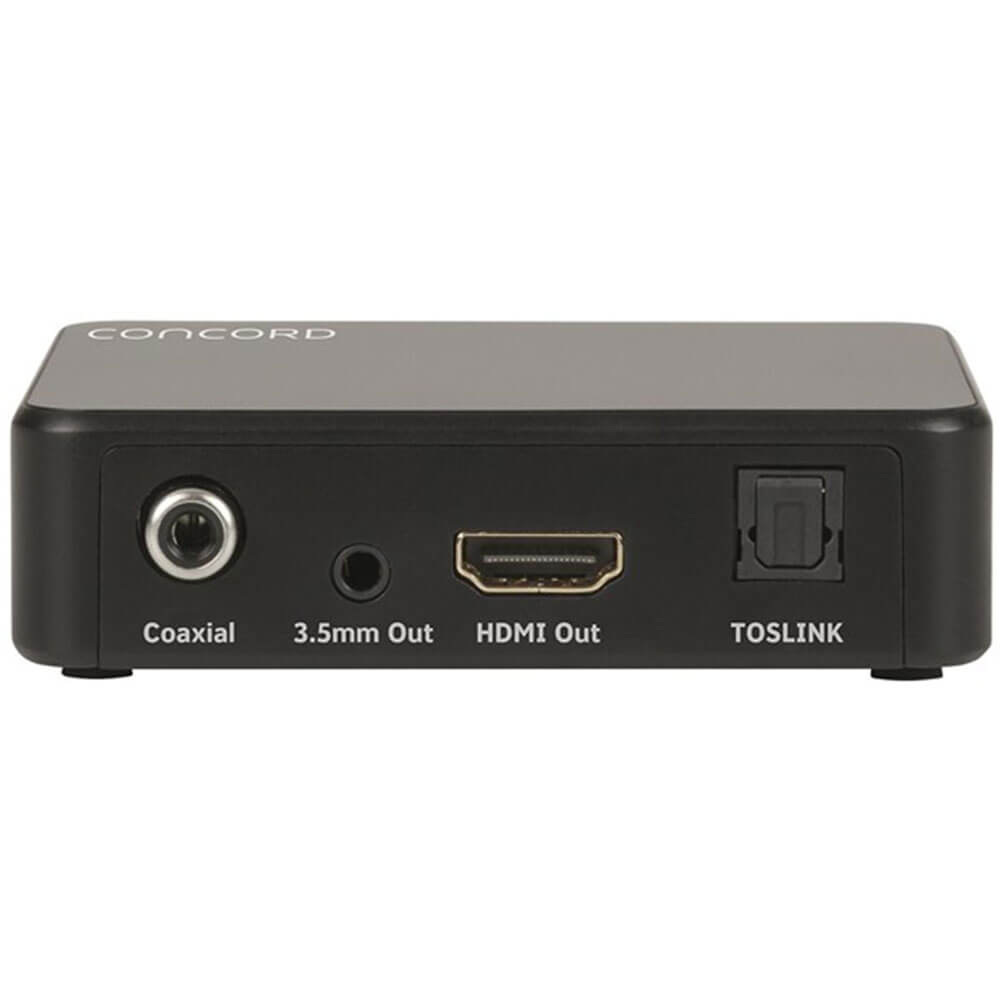

• Output Connection : HDMI Type-A, RCA Digital Coaxial Audio (SPDIF), TOSLINK

• Length : 15 cm
• Width : 12 cm
• Height : 7.5 cm
