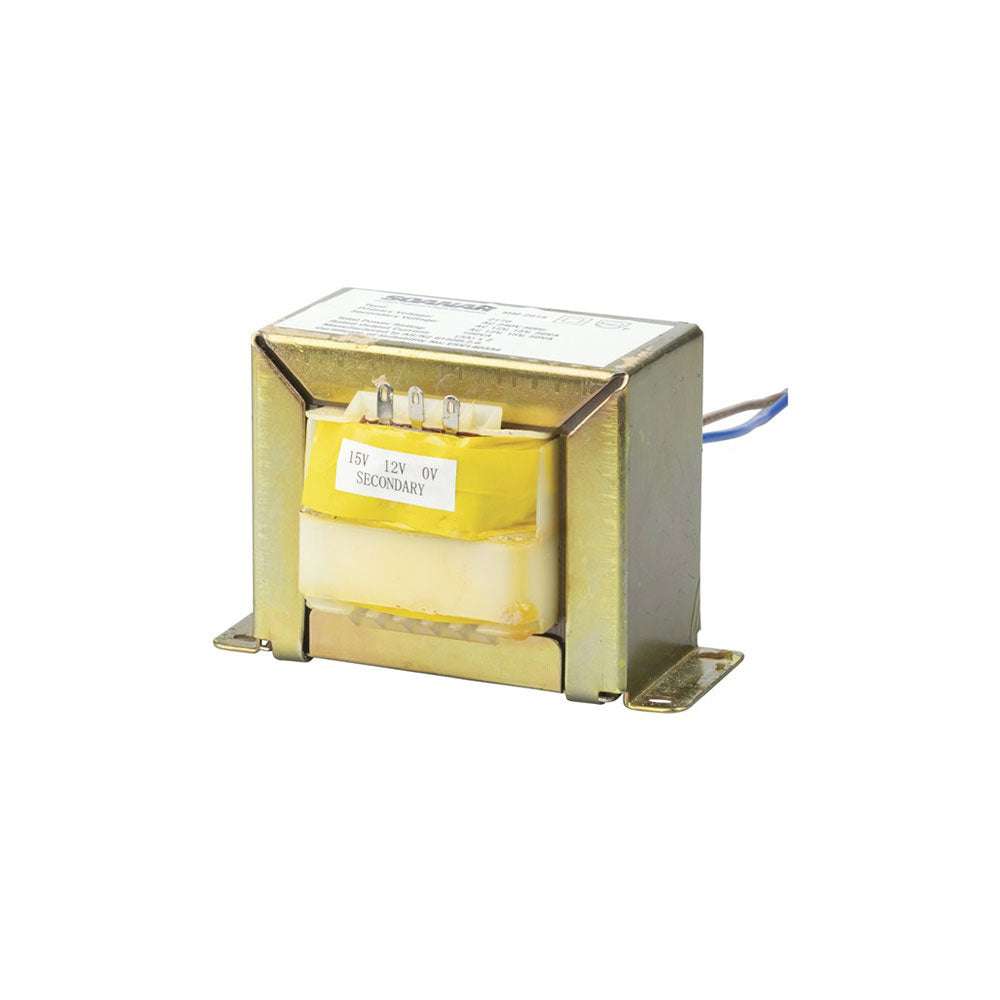

Multi-Tapped Dual Type 2170 Transformer 12V-30V 6A

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.

Product Specifications

• Primary Connection: 200mm Fly Leads
• Type of Transformer : Laminated Core
• Case Type : 2170
• Primary Winding Connection : Flyleads
• Secondary Winding Connection : Solder Tags
• Secondary Winding Configuration : Multi-tapped
• Temperature Rise Above Ambient at Rated Power : 70DegC
• Regulation : 7%
• Core Material : Laminated Iron
• Magnetising Current : 80mA
• AC current rating : 3A, 3A
• AC Voltage rating : 12V, 12V, 15V, 15V
• Weight : 1600g
• Mains Voltage Range : 240V

• Length : 10.5 cm
• Width : 8 cm
• Height : 7 cm
