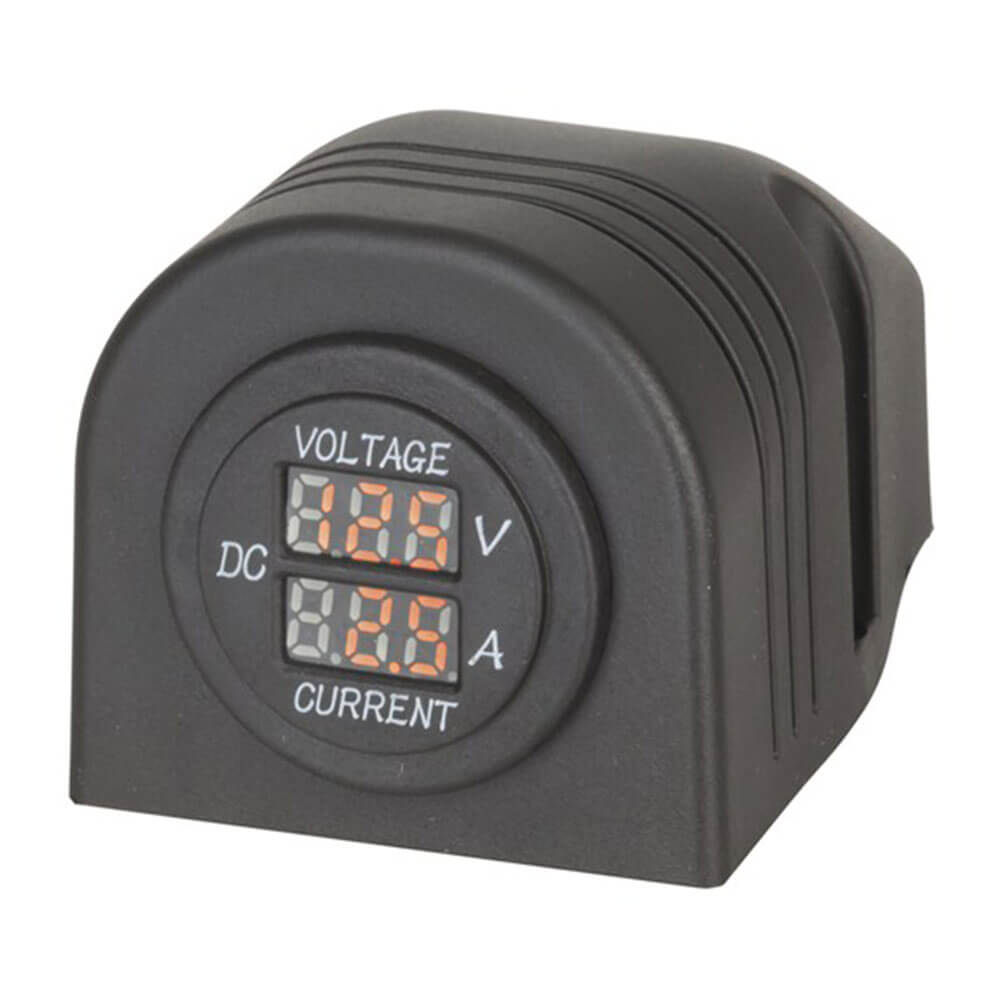

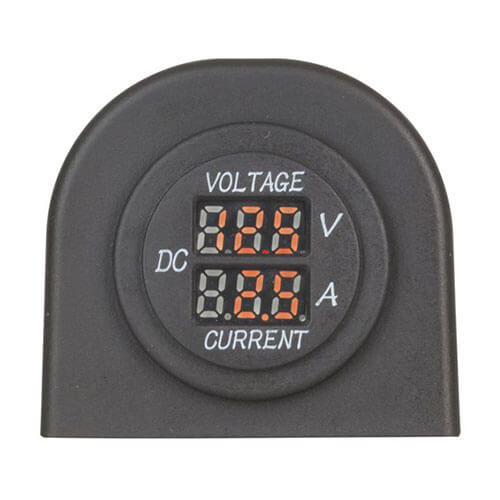

Panel/Surface Mount LED Voltmeter and Ampmeter

Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.

Product Specifications

• Supplied with brackets for panel or surface mounting
• Connection is via three 6.3mm spade terminals (current shunt in-built)
• Also available with additional modules
• Current DC Measuring Range : 0.0A, 10.0A
• DC Volts Measurement Range : 5.0V, 30.0V
• Digits Displayed : 3.0 digit
• Display Type : LED
• Display Backlight : Red LED Backlit
• Width : 60.0mm
• Height : 42.0mm
• Dimensions for : Including Bracket
• Dimension details : Panel Mounting
• Mounting Method : Panel
• Attachment / Securing Method : Collar / Nut
• Dimension details : Including Bracket
• Dimensions for : Under Dash / Surface Mount Hood
• Width : 55.0mm
• Height : 50.0mm
• Depth : 80.0mm
• Dimensions for : Without Bracket
• Dimension details : Voltmeter/ammeter module
• Depth : 40.0mm
• Diameter : 36.0mm

• Length : 18 cm
• Width : 8 cm
• Height : 5 cm
