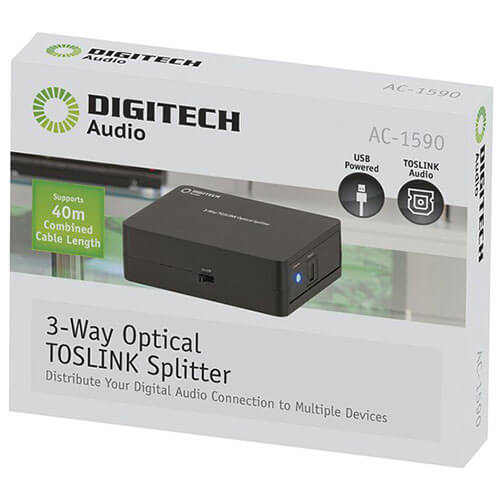

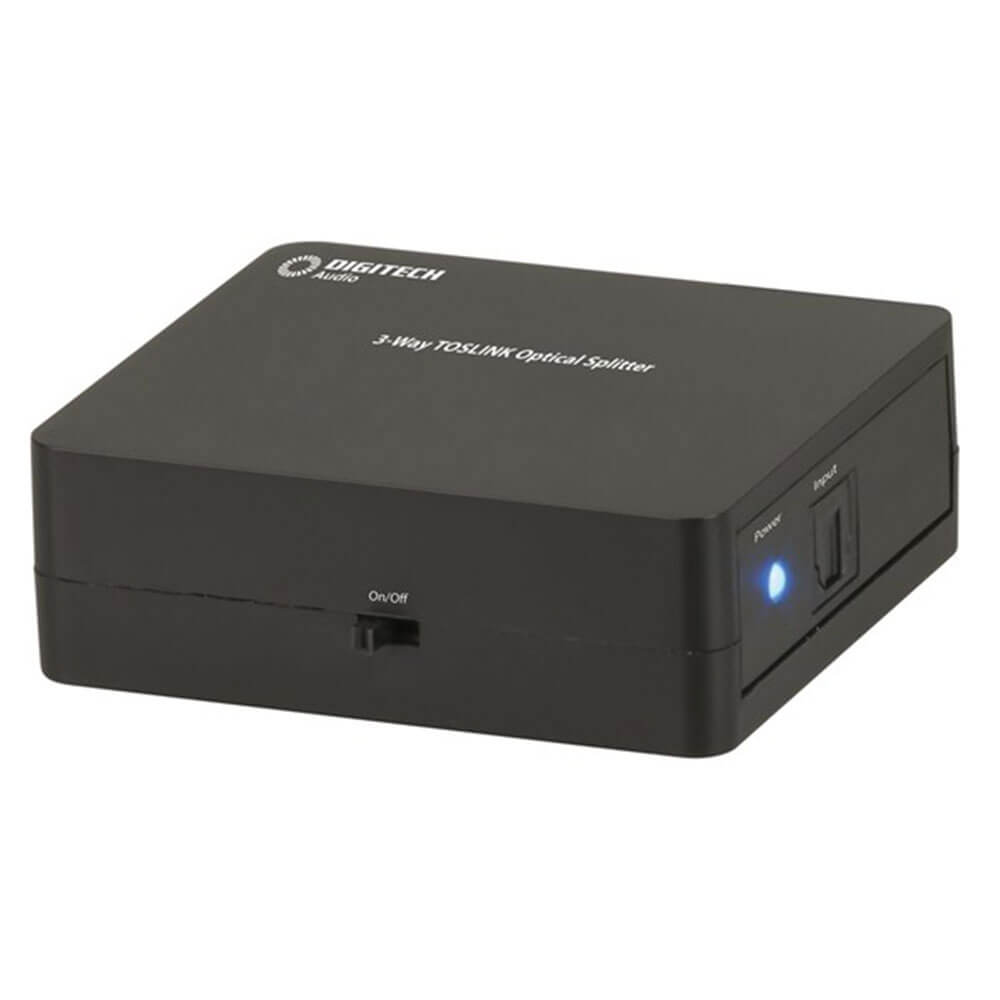

Digitech TOSLINK 3-Way Digital Optical Audio Splitter

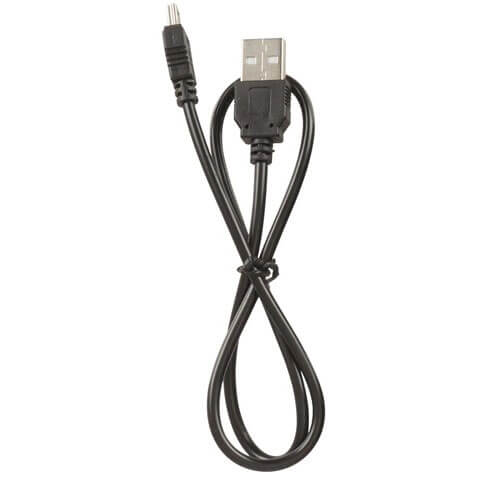

Distribute your digital audio connection to multiple sources such as sound bars, headphones or your home theatre system. Allows a combined optical cable length of 40m with no audio quality loss. Audio format support for LPCM2.0, DTS and Dolby AC-3 with signal retiming for perfectly synced audio. USB powered and features voltage overload protection. Includes USB charging cable. Specifications: Inputs: 1 x TOSLINK (Optical) Outputs: 3 x TOSLINK (Optical) Frequency: 96KHz Baud Rate: 16Mbps Audio: LPCM 2.0, DTS, Dolby AC-3 Supported Cable Length: 40m (Total) Power: 5VDC, 500mA (USB Mini B) Power Consumption: 200mA (Max) Dimensions: 60(W) x 54(D) x 20(H)mm

Product Specifications

• Digital Audio Format : LPCM 2.0, DTS, Dolby AC-3
• Maximum Signal Frequency : 96.0kHz
• Baud Rate : 16.0Mb/s
• Width : 62.0mm
• Height : 21.0mm
• Depth : 58.0mm
• PSU Powers : Main Product
• DC Voltage : 5.0V
• DC Current Draw : 500.0mA
• Switcher/Converter Type : Distribution Amplifier Splitter
• Input type : Digital Audio
• Input Connection : TOSLINK
• Number of inputs : 1.0pc
• Output Type : Digital Audio
• Output Connection : TOSLINK
• Number of Outputs : 3.0pc
• Power Requirement : External Power Required
• Maximum Total Cable Length (all in and out) : 40.0m

• Length : 13.5 cm
• Width : 2.5 cm
• Height : 10.5 cm
