USB Interface Robotic Arm Actuator Project Kit (suit KJ8916)

Assembly Required

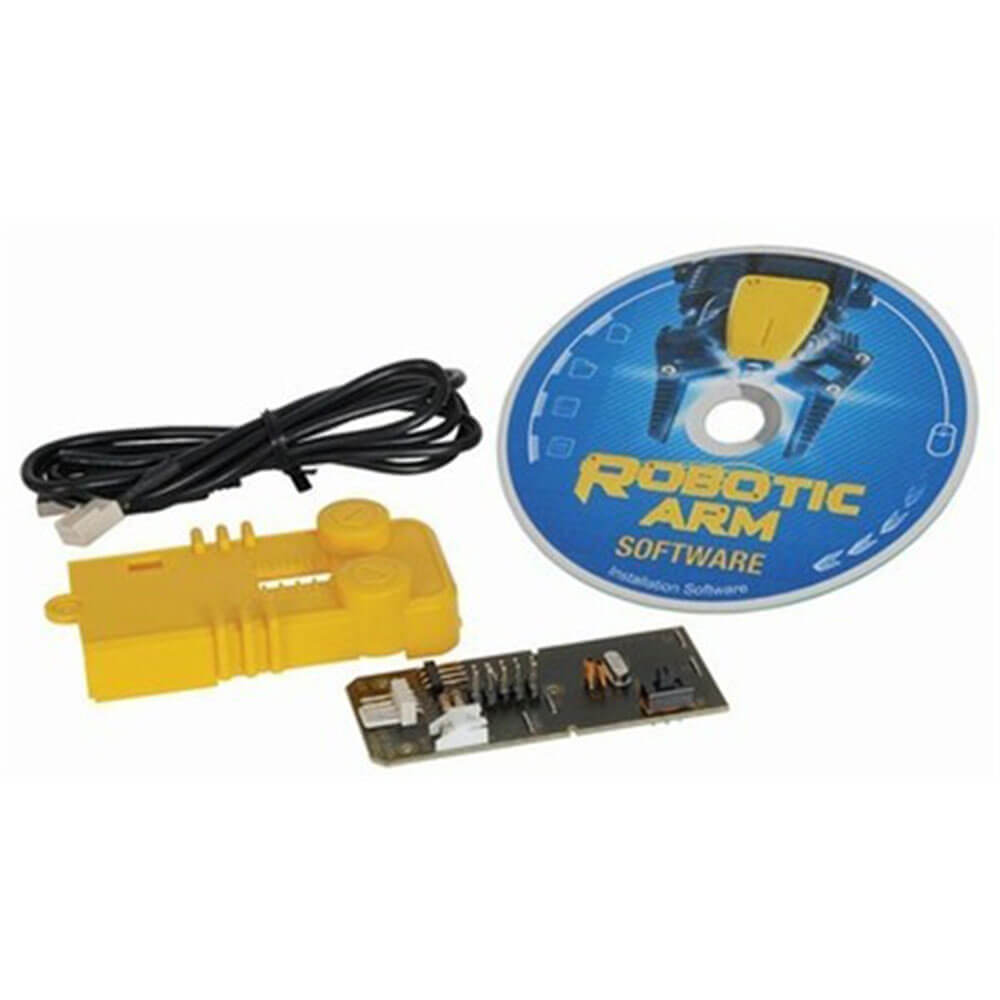

Add computer control via USB to your Robotic Arm. The kit includes everything you need - interface cable, pre-built PCB, enclosure and software for controlling function. You can use a keyboard or mouse to have real-time control of the robotic arm, or you can program, edit and load individual functions and movements, just like a real industrial robot. The commands are saved just like a normal computer file to be loaded and used later.

To install software on Windows 10:

You need to run Windows 10 with Digital driver signing enforcement turned off, and run the installer in compatibility mode for XP SP3.

To do this:

• Go to power in the start menu, and while holding shift, click restart. This brings up an option screen.
• Choose Troubleshoot, then Advanced Options, then Startup Settings and restart.
• After restart, press 7 (disable Digital driver signing enforcement)
• Browse CD and right click install.exe, select Properties, Compatibility Tab and select Run this program in compatibility mode for Windows XP (SP3) and click OK.
• Run the install.exe. Everything from now on will be as for a usual install.

Product Specifications

• Kit Form : Short Form (circuit only)
• Kit Group : Mechatronics
• Difficulty : Detailed
• Recommended Minimum Age : 12.0Yr
• Contains High Voltage Components : false
• Additional required items : Robot arm with controller

• Length : 18.5 cm
• Width : 14 cm
• Height : 4.5 cm
